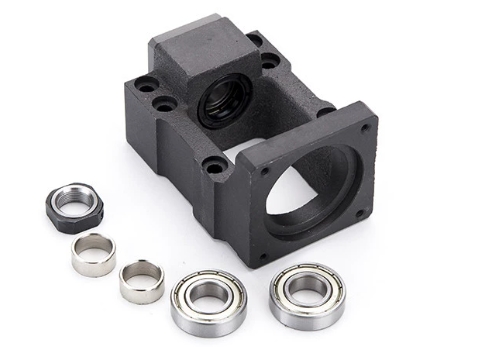

What Are The Advantages of The Ball Screw Motor Seat?

The motor integrated seat is the motor drive seat, coupling,support seat,nut seat,ball screw into one.No need to match the fixed seat, screw, without too much adjustment,more convenient installation and better precision.The traditional connection method takes a lot of time to debug and re-debug the center high,eccentricity,improper debugging will directly lead to screw shaft break or coupling break,affecting the normal operation of the equipment.The motor drive seat changes the traditional connection mode to integration,higher precision, easier installation and more beautiful.

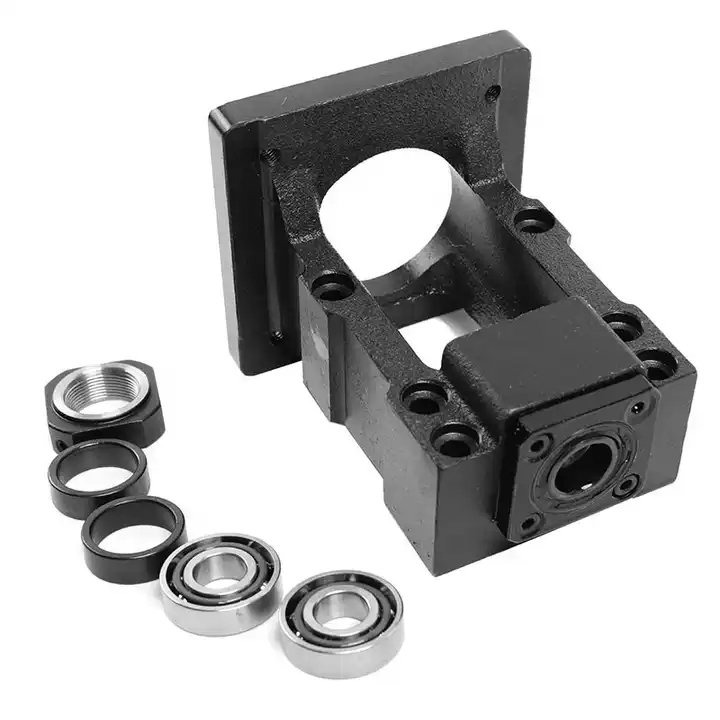

●Internal structure of motor drive seat

The motor drive seat is an integrated type of support side support seat,the drive seat design size is compact,and easy to install,can be installed in a narrow space.Since the bearings are properly preloaded,they can be assembled into the equipment without reprocessing,reducing assembly time and improving assembly accuracy.The motor base drive seat is equipped with a special ball screw support seat(including radial thrust bearings),which effectively controls the advantages of the screw axial motor drive seat

●High precision

The ball screw and motor are installed on the same workpiece,and this structure can effectively reduce the error between the two axes(concentricity deviation ±0.02mm/ verticality deviation ±0.02mm).

●High positioning accuracy

The connector is equipped with a special ball screw support seat(including radial thrust bearings),which effectively controls the screw axial displacement.

●Easy to install

Equipped with servo unit,the motor can be easily installed using the connector. It can cooperate with the servo motor and stepper motor,and it is convenient to install without adjusting the axis alignment.

●Modular design

Easy installation and straightening, small size, light weight, diversified options.
