Tr5x2.54
ALM
8479909090
Tr5x2.54 lead screw diameter is 5mm,lead is 2.54mm,pitch is 1.27mm with 2 starts.T5x2.54 lead screw run one circle,the nut will travel 2.54mm.Tr5 miniature lead screws are space-saving and are commonly used for the auto and motor industry.
●Diameter 5mm Lead Screw Information:
Available lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Custom Services | Customized nuts and end machining are available upon drawing |

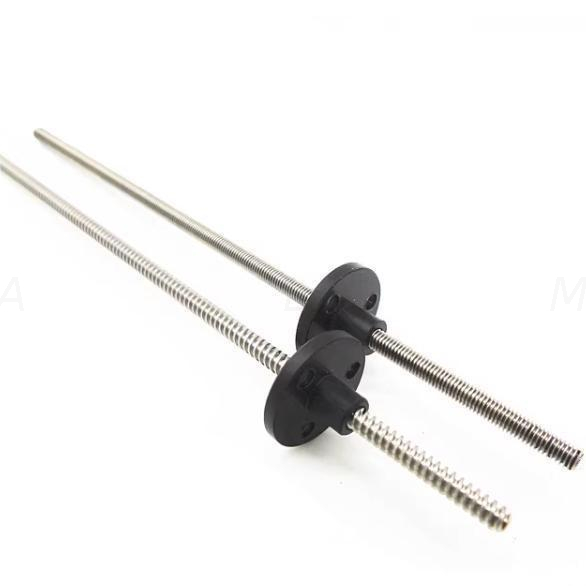

This Tr5x2.54 lead screw has a round flange nylon or POM nut.The choice between nylon and POM lead screw nuts depends on the requirements of your application.Nylon lead screw nuts offer good vibration damping and noise reduction properties,while POM nuts provide superior mechanical strength and heat resistance.Nylon nuts are lightweight and cost-effective,whereas POM nuts are known for their high performance and dimensional stability.Nylon nuts are suitable for applications where corrosion resistance is important,while POM nuts excel in high-temperature and high-precision applications.
Tr5x2.54 lead screw diameter is 5mm,lead is 2.54mm,pitch is 1.27mm with 2 starts.T5x2.54 lead screw run one circle,the nut will travel 2.54mm.Tr5 miniature lead screws are space-saving and are commonly used for the auto and motor industry.
●Diameter 5mm Lead Screw Information:
Available lead screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available lead nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated |
Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
Clearance | 7e,higher precision is available upon request |
Custom Services | Customized nuts and end machining are available upon drawing |
This Tr5x2.54 lead screw has a round flange nylon or POM nut.The choice between nylon and POM lead screw nuts depends on the requirements of your application.Nylon lead screw nuts offer good vibration damping and noise reduction properties,while POM nuts provide superior mechanical strength and heat resistance.Nylon nuts are lightweight and cost-effective,whereas POM nuts are known for their high performance and dimensional stability.Nylon nuts are suitable for applications where corrosion resistance is important,while POM nuts excel in high-temperature and high-precision applications.
