TR10x9
ALM
8479909090

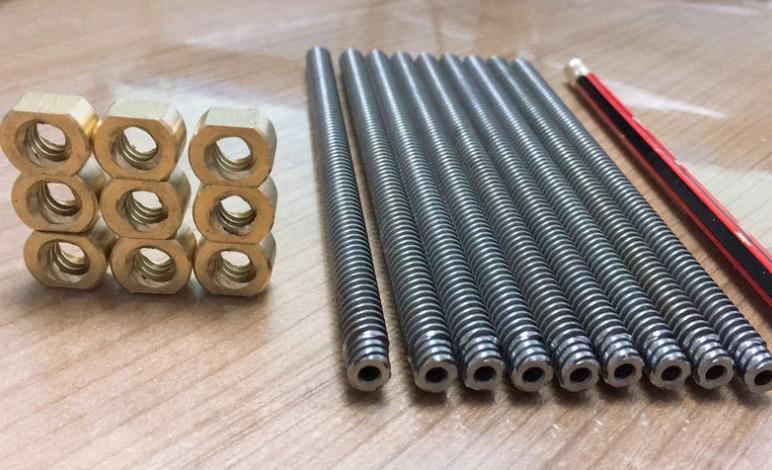

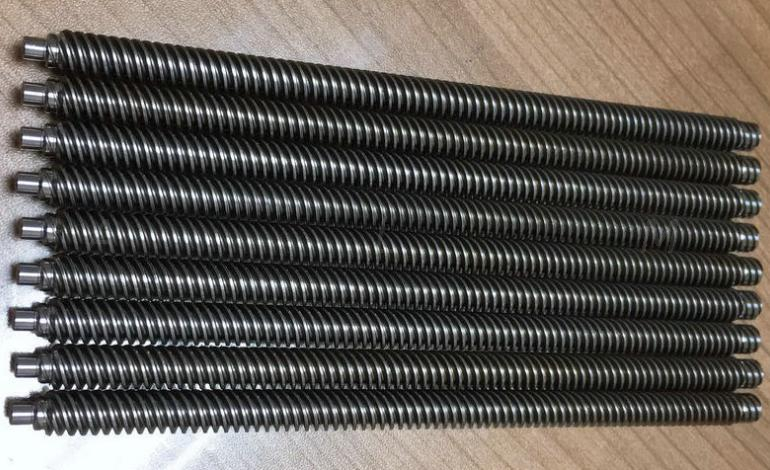

Diameter 10mm Lead 9mm SUS304 Tr10x9 Trapezoidal Lead Screw
The diameter of the lead screw is 10mm,lead is 9mm,pitch is 1.5mm,and the number of threads starts is 6.The size of the nut and lead screw can be produced according to your needs.The accuracy of the T10x9 lead screw is divided into general precision and high precision. The highest accuracy can reach 0.01mm/100mm.
| Diamter | 10mm |
| Lead | 9mm |
| Length | According to your needs |
| Shaft end machining | Processing according to your requirements |
| Nut shape and dimension | According to your needs |
| Thread Direction | Right hand thread/left hand thread/right and left hand thread |
| Available screw material | ASTM1045,SUS303,SUS304,SS316,SS316L |
Available nut material | Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) |
Available surface coating | Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated,molybdenum disulfide. |
| Quality standard | ISO9001:2015,CE certificate,RoHS and reach compliance |
| Clearance | 7e,higher precision is available upon request |
| Lead accuracy | Can be 0.02mm/100mm |
Contact our sales staff to customize more lead screw details.
